Software-Controlled Signal Routing

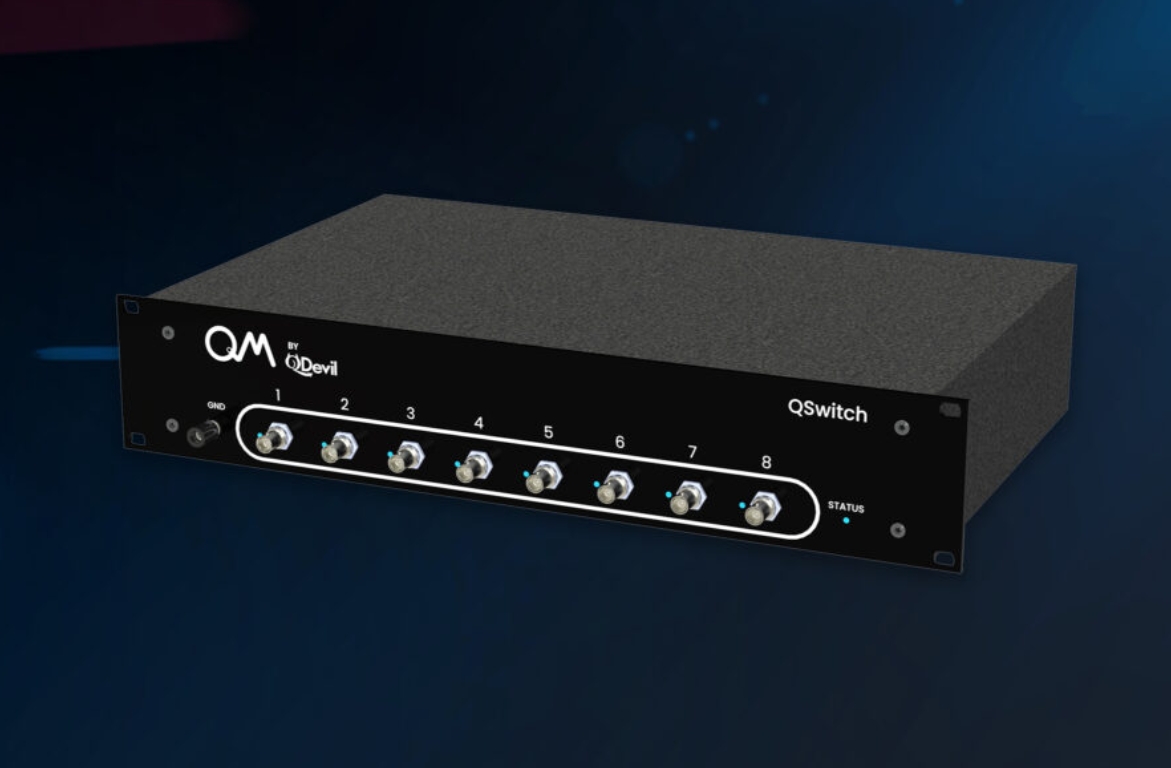

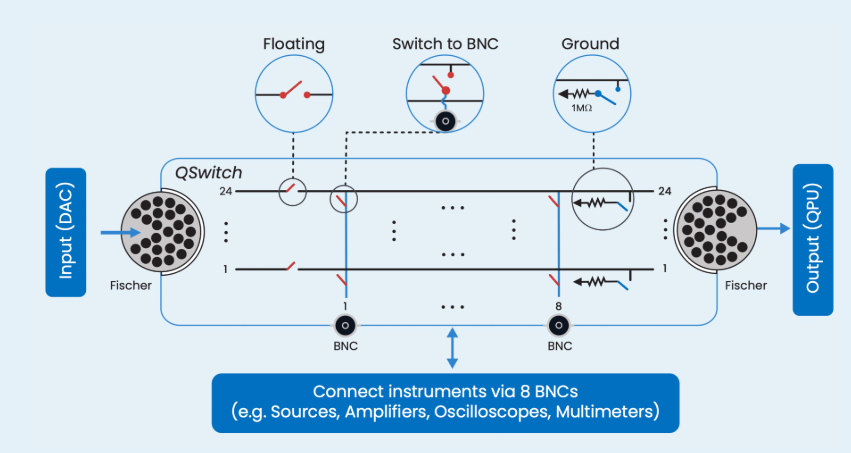

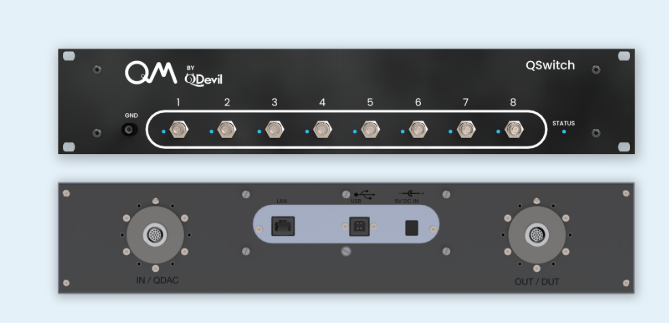

QSwitch’s 240 software-controlled relays offer maximum flexibility to connect any Fischer line to a Fischer input or any of 8 BNCs for monitoring and control.

Automate Your Measurements

Integrate entire measurement sequences into experimental scripts saving valuable research time. QSwitch not only permits off-hour autonomous experiments but also encourages the sharing of standardized measurement scripts among experiments and researchers.

Ease of Programming

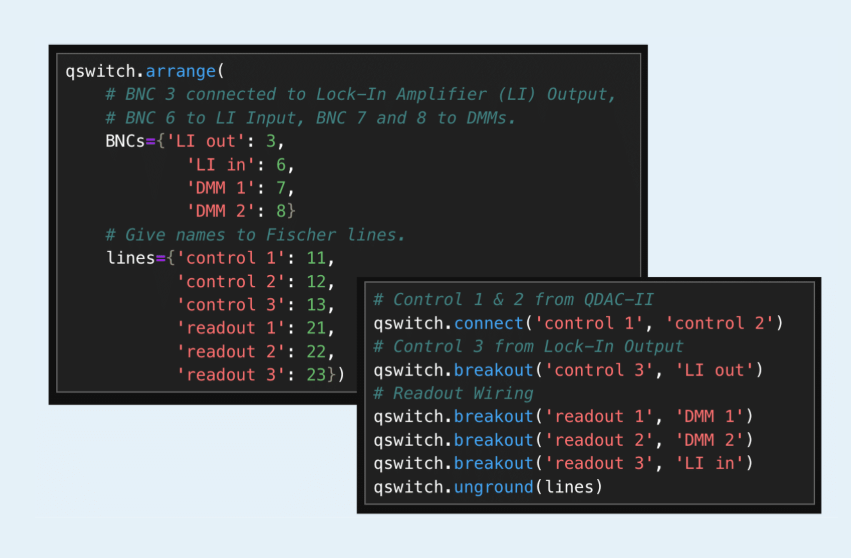

By employing user-friendly SCPI commands, users can effortlessly control, log, and oversee all signal paths, and embed these commands into their control scripts – such as Python scripts – with mere minutes of set-up time.

Reliable Operation

QSwitch ensures reliable qubit performance with low mutual capacitance and low switching transients. QSwitch is also built with protective mechanisms, such as soft-grounding of all signal lines during power disruption, safeguarding your valuable instruments.

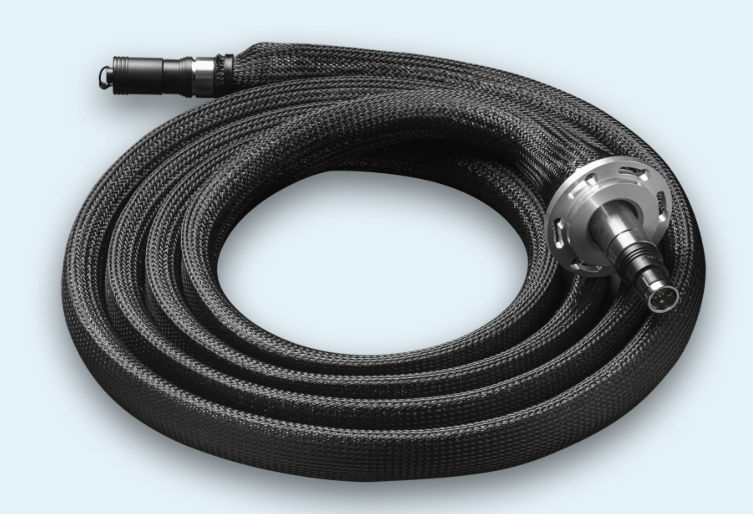

Double Shielded Low Noise Cable

QSwitch uses two flexible, low-noise cables with 24-channel Fischer connectors on each end to connect to the QDAC-II and the dilution refrigerator wiring. The cable comes with braided metal underneath the plastic braid, which helps in reducing noise pickup further.
